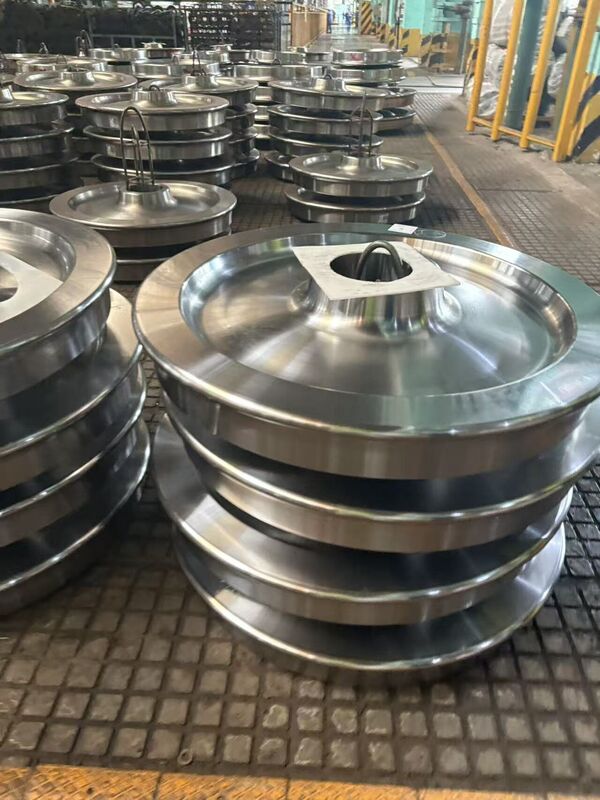

N13262 Steel Railway Wheels 700–920mm for Metro and Passenger Rail Systems

1. What It Is

Steel railway wheels for metro and passenger rail systems are designed to provide stable running performance, smooth wheel-rail contact, and long-term operational reliability.

These forged wheels are suitable for urban transit systems operating under frequent acceleration and braking cycles.

Manufactured according to EN13262 requirements, they provide balanced wear resistance and fatigue performance for passenger applications.

2. Where It Is Used

These steel railway wheels are widely used in:

• Metro train systems
• Urban rail transit networks
• Passenger rail vehicles
• Light rail transit systems
• Suburban rail transportation
• Electric multiple unit (EMU) systems

3. Why Choose It

ER7 / ER8 Material Selection

ER7 provides balanced strength and wear resistance.

ER8 can be selected where higher loads and extended service life are required.

Passenger-Oriented Wheel Design

The wheel profile is optimized to improve wheel-rail contact conditions and support smooth operation.

Moderate Diameter Range (700–920 mm)

Suitable for metro cars, passenger rail vehicles, and urban transit fleets.

Stable Hardness Range (250–320 HB)

This hardness range supports both wear resistance and running comfort.

Precision Forging and Machining

Forging and CNC machining improve profile accuracy and operational consistency.

4. Data Support

Key parameters:

• Wheel Diameter: 700–920 mm
• Flange Height: 28–35 mm
• Flange Thickness: 27–33 mm
• Rim Thickness: 60–75 mm
• Bore Diameter: 110–240 mm
• Hardness: 250–320 HB

These parameters affect:

Passenger Comfort → wheel profile accuracy and stability

Operational Safety → flange geometry and dimensional precision

Service Life → hardness and material performance

Maintenance Interval → wear resistance and heat treatment quality

System Compatibility → bore dimensions and wheel diameter

5. Technical Specifications

6. Selection Guide

By Application

Metro systems → ER7

Urban rail transit → ER7

Passenger rail → ER7 / ER8

Long service cycles → ER8

By Load Capacity

Standard passenger service → ER7

Higher passenger density → ER8

Frequent acceleration and braking → controlled hardness recommended

By Wheel Diameter

700–780 mm → compact metro systems

780–850 mm → standard metro vehicles

850–920 mm → passenger and suburban rail systems

7. What Problem It Solves

These steel railway wheels help solve:

• High wear caused by frequent braking
• Reduced service life in urban transit systems
• Vibration during passenger operation
• High maintenance frequency in metro fleets

They improve stability, reduce maintenance, and extend service life.

8. FAQ

Q1: What material is commonly used for passenger railway wheels?

ER7 is commonly used, while ER8 is recommended for higher load conditions.

Q2: Can these wheels be customized according to drawings?

Yes. Customized dimensions and wheel profiles are available.

Q3: Is third-party inspection available?

Yes. Third-party inspection and complete test reports can be provided before delivery.
